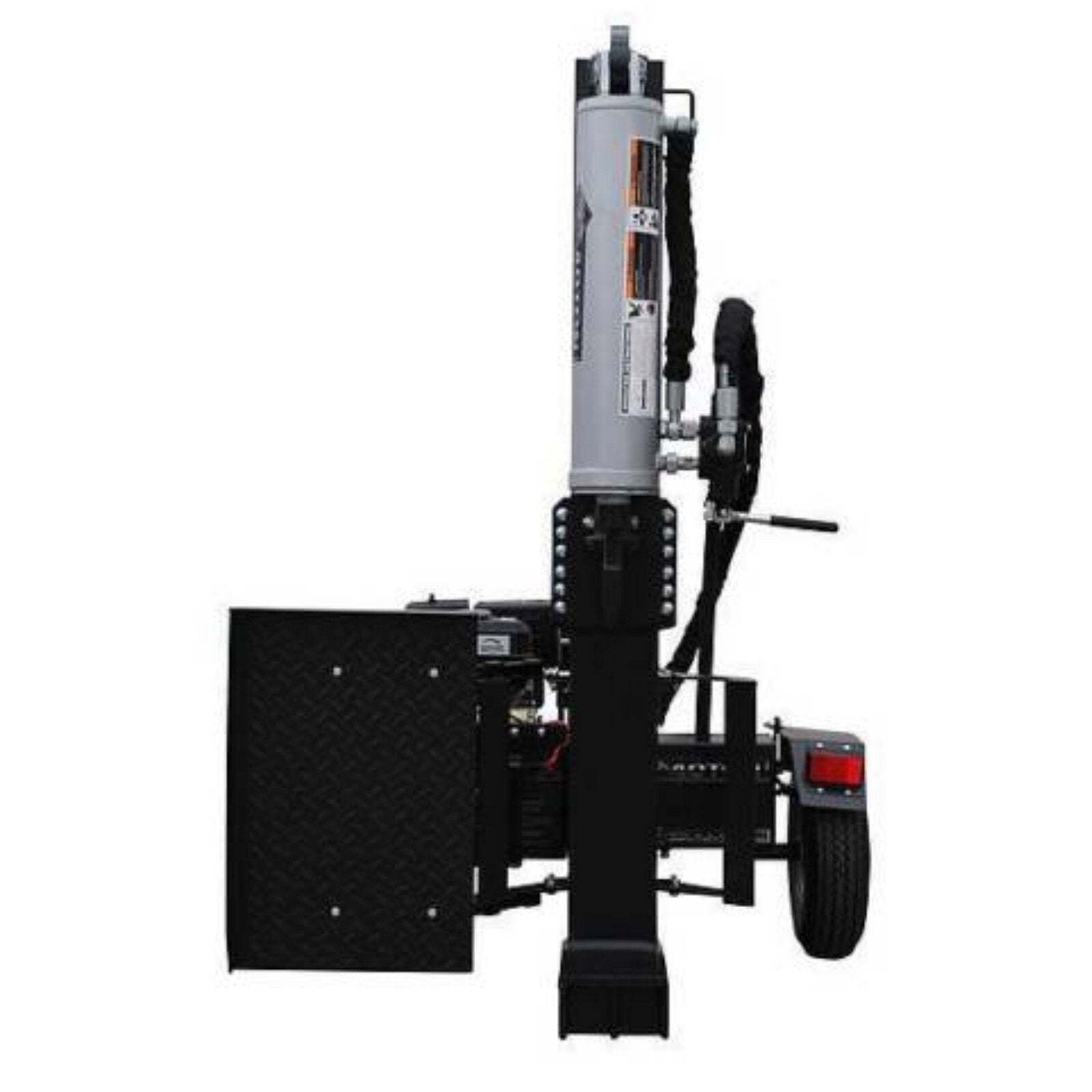

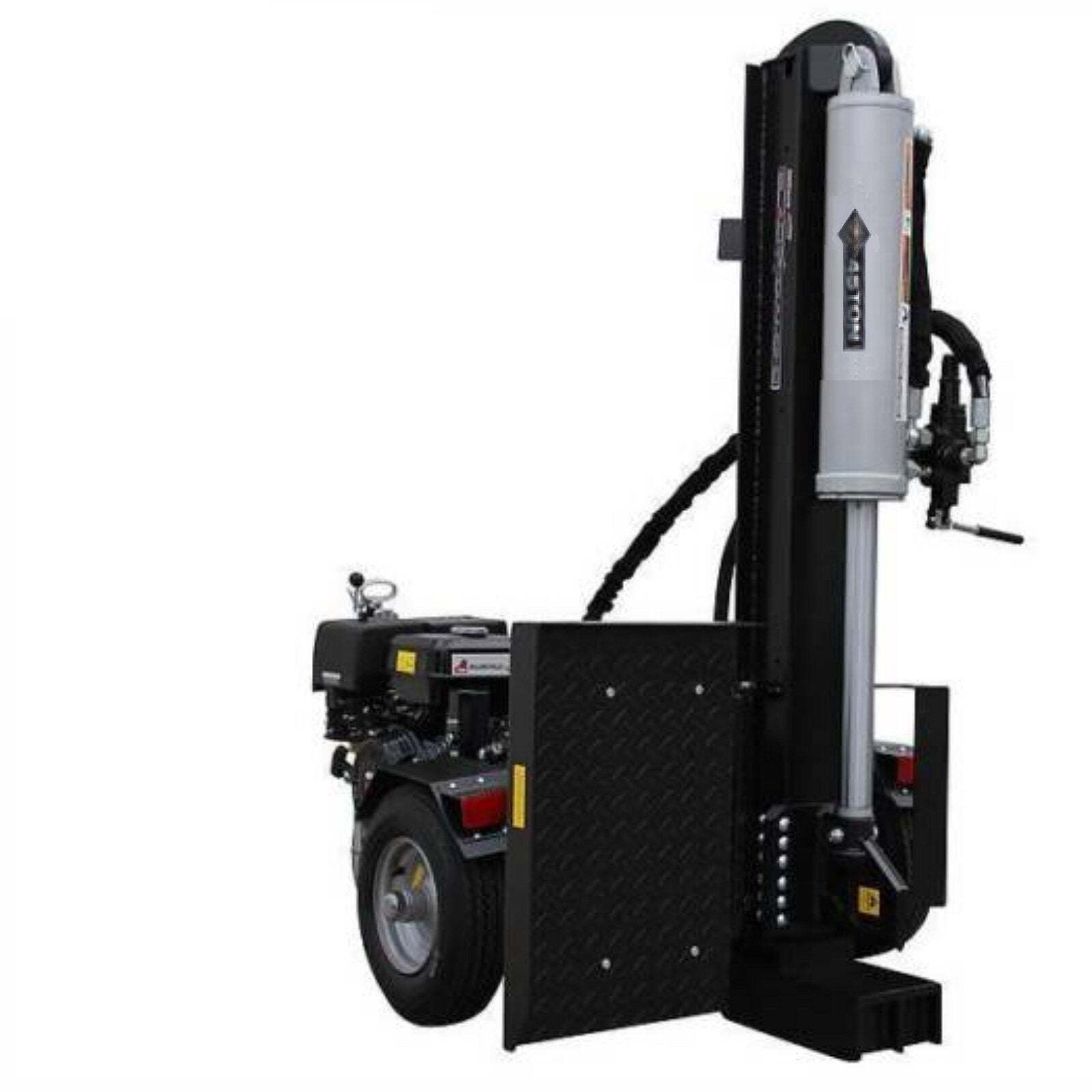

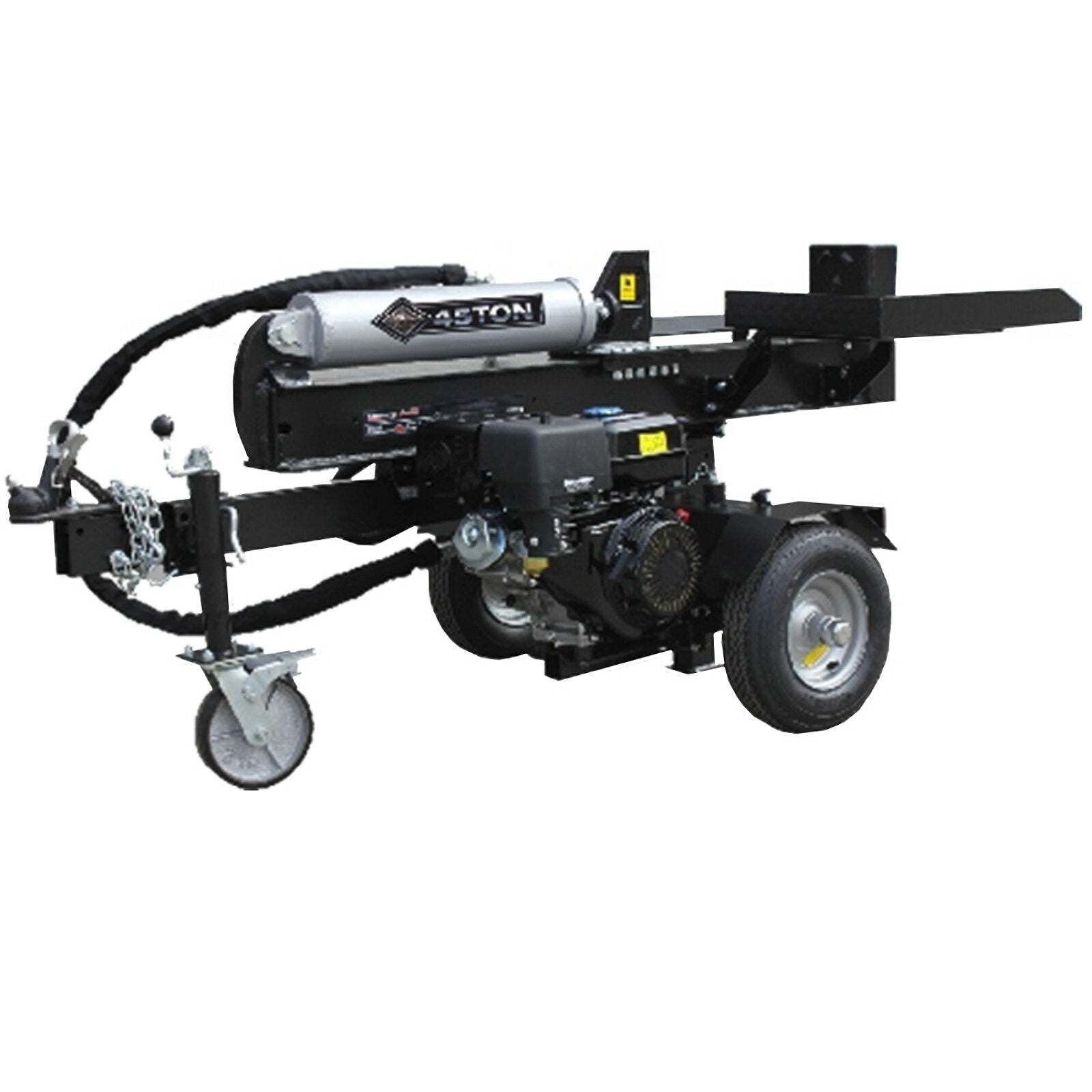

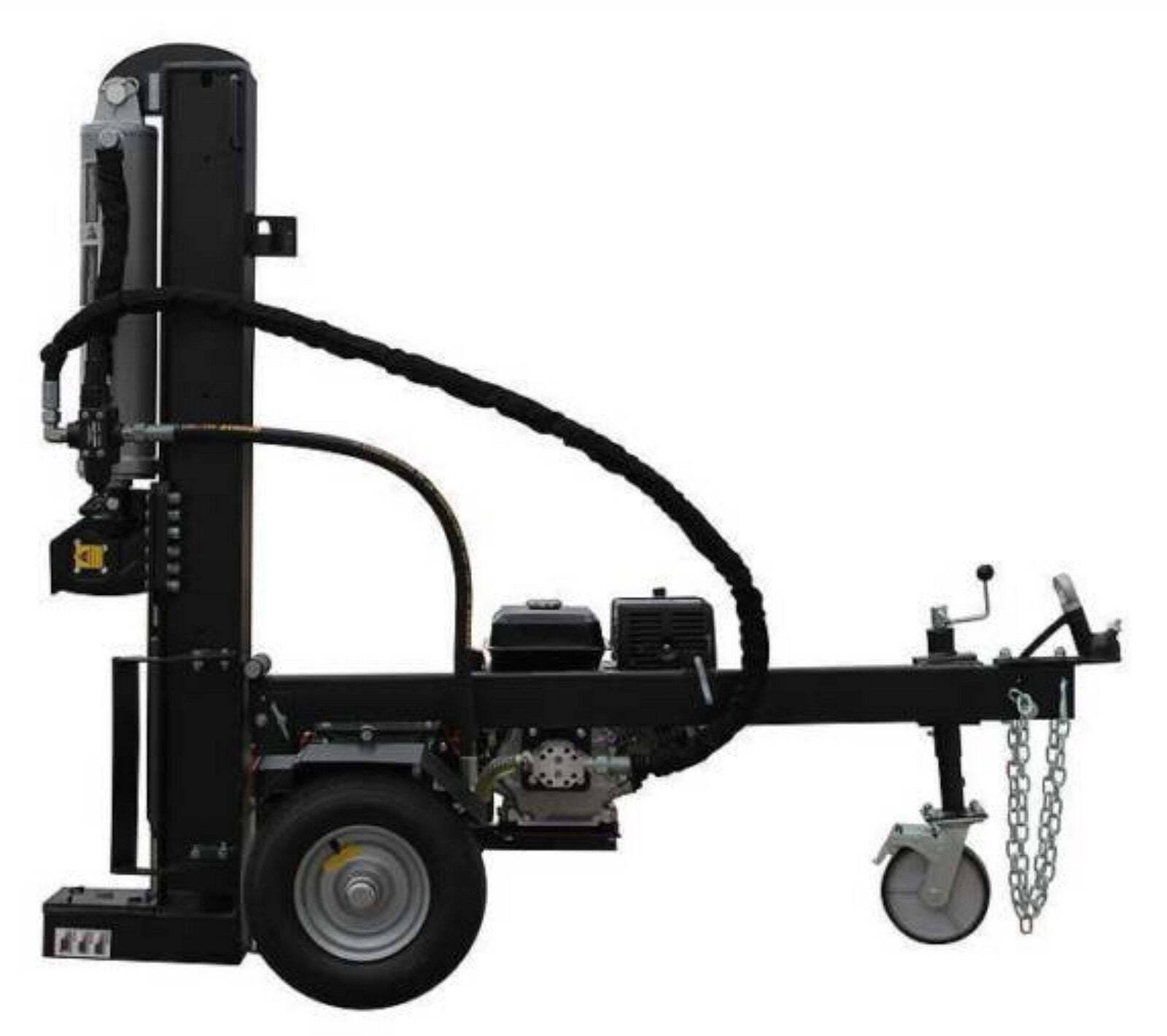

TWM 15HP 45 Tonne Log Splitter Manual Start LS45BD

Model: LS45BD

  • Model: LS45BD
  • Engine: 15 horsepower, 4 stroke, OHV, air cooled
  • Manual (recoil) start
  • Hydraulic cylinder size: 5” (127mm) diameter x 19.4”(493mm) stroke
  • Gear pump : 2 stage 11GPM
  • Automatic return control valve with safety release function
  • Maximum splitting force: 45 ton
  • Wedge height 8” (200mm)
  • Split and return cycle time: 18 seconds
  • Maximum log length: 21 1/2” (550mm)
  • Working position: Horizontal and vertical
  • Wheels and tyres: 16” pneumatic
  • Jockey wheel: 8” (200mm) x 2” (50mm)
  • Coupler: 50mm cast steel with safety chains
  • Maximum recommended towing speed: 72 km/h

(LS45BD)

SKU LS45BD
Brand Millers Falls
Shipping Weight 320.0000kg
Shipping Width 1.730m
Shipping Height 0.790m
Shipping Length 0.520m
