TWM 22 Ton Petrol Log Splitter LS22BD

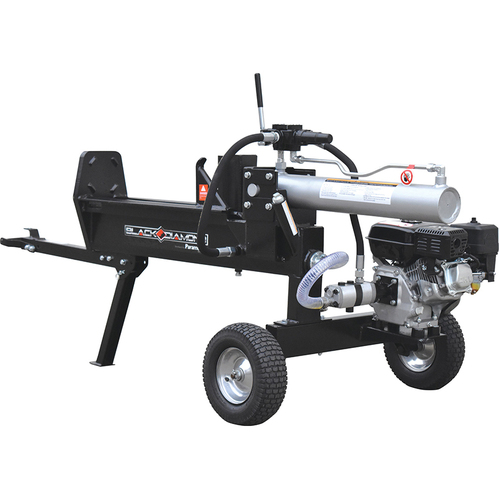

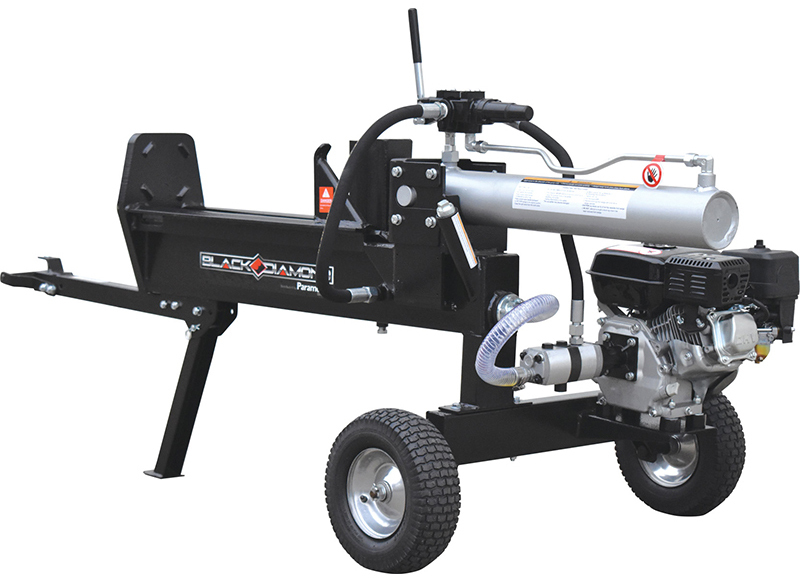

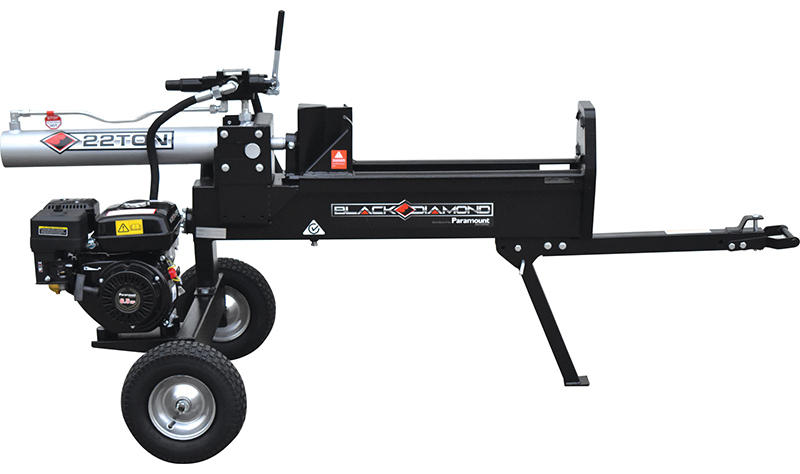

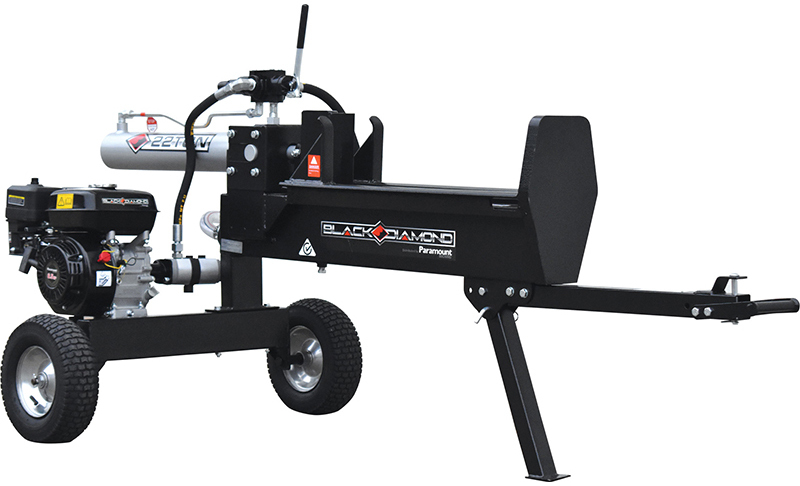

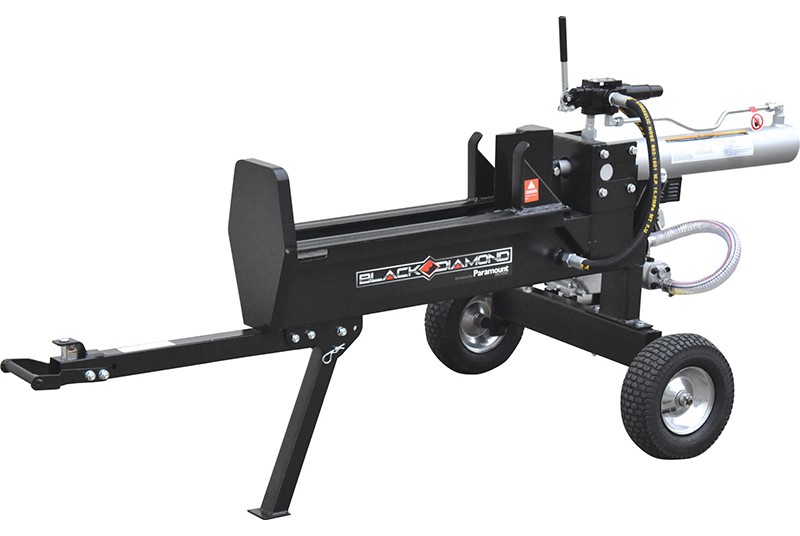

The Black Diamond 22 Ton Petrol Log Splitter LS22BD is a powerful and efficient tool designed for splitting logs quickly and easily. Powered by a 6.5hp 4-stroke OHV petrol engine, this log splitter can tackle even the toughest logs with ease.

The LS22BD features a robust fabricated steel frame and a heavy-duty 180mm splitting wedge, which ensures a reliable and durable performance. The splitter also has an auto return control valve with a safety release function, which ensures safe and efficient operation.

The maximum log length that can be split with this log splitter is 610cm, making it suitable for a wide range of log sizes. Additionally, the splitter features an ATV / Ride-On tow hitch, which makes it easy to transport the splitter to different locations.

The log splitter also has a compact design, which makes it easy to store when not in use. Its powerful petrol engine provides enough power to handle large logs, while the auto return control valve ensures smooth and efficient operation.

The Black Diamond 22 Ton Petrol Log Splitter LS22BD is a highly efficient and reliable tool that is perfect for splitting logs for firewood, construction, and other purposes. Its powerful petrol engine, sturdy construction, and auto return control valve make it a great choice for anyone who needs to split large logs quickly and easily.

  • Model: LS22BD

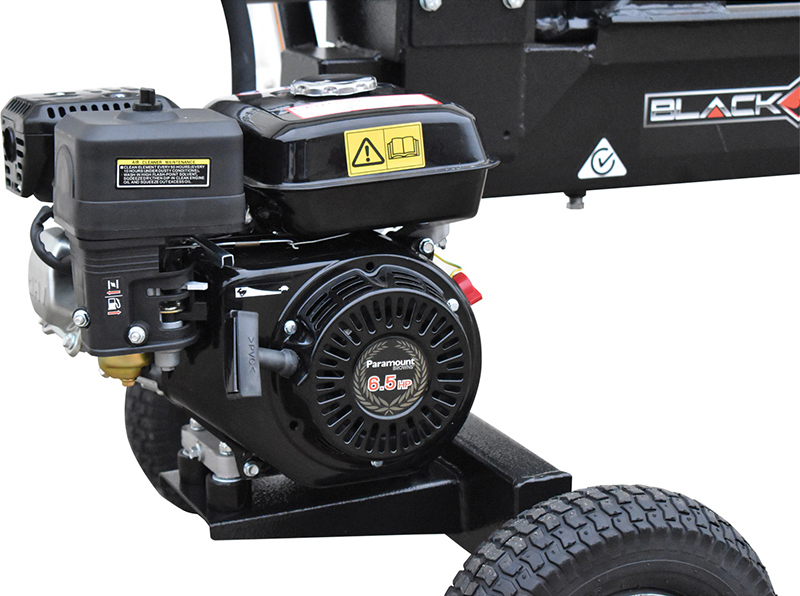

  • Petrol Engine: 6.5hp
  • Recoil Start: Yes
  • Electric Start: No
  • Battery Size: NA
  • Recommend Engine Oil: 10W/40
  • Horizontal Use: Yes
  • Vertical Use: No
  • Max Log Length: 610mm
  • Ram Capacity: 22Ton
  • Ram Diameter: 90mm
  • Stroke: 574mm

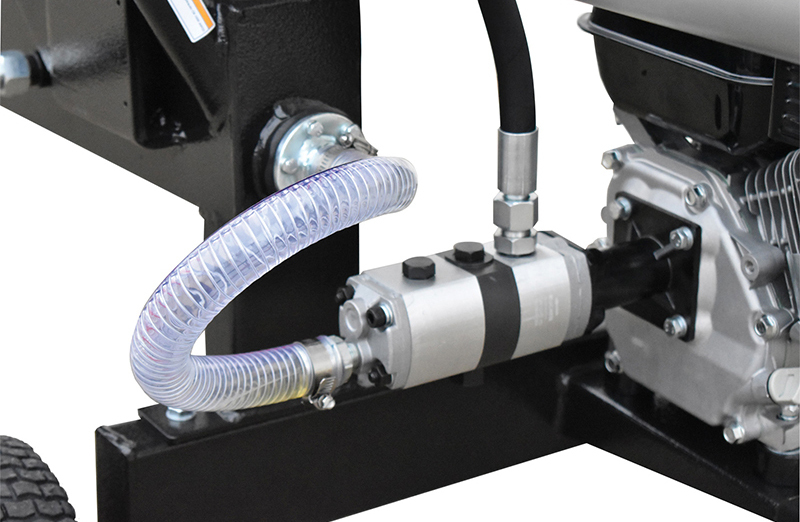

  • Pump: Twin Stage

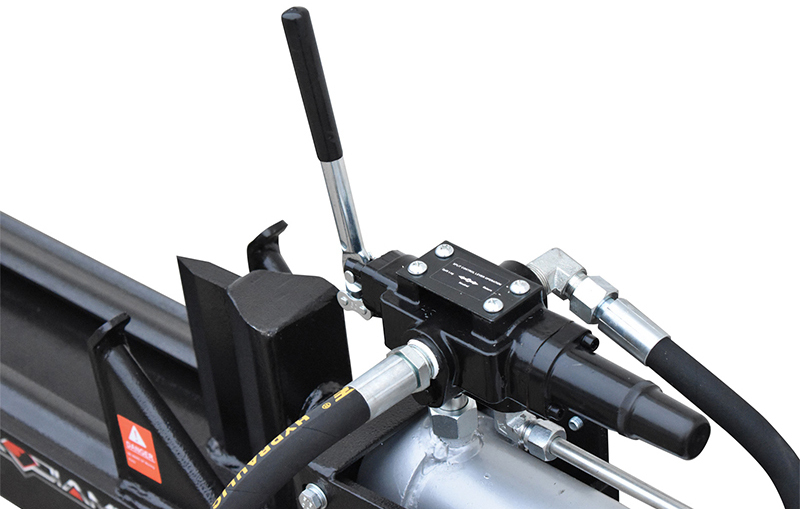

  • Auto Return Release: Yes
  • Total Cycle Time (Min): 14sec
  • Splitting Time (Min): 7.5sec
  • Return Time (Min): 6.5sec
  • Oil Reservoir: 12.5L
  • Hydraulic Oil: Included
  • Recommend Hydraulic Oil: 10W AW32
  • Lifting Table Capacity: NA

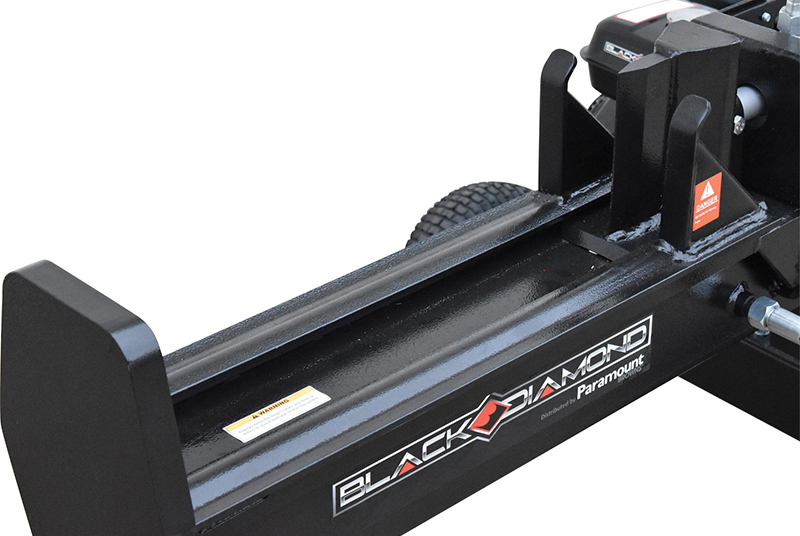

  • Splitting Wedge: 180mm

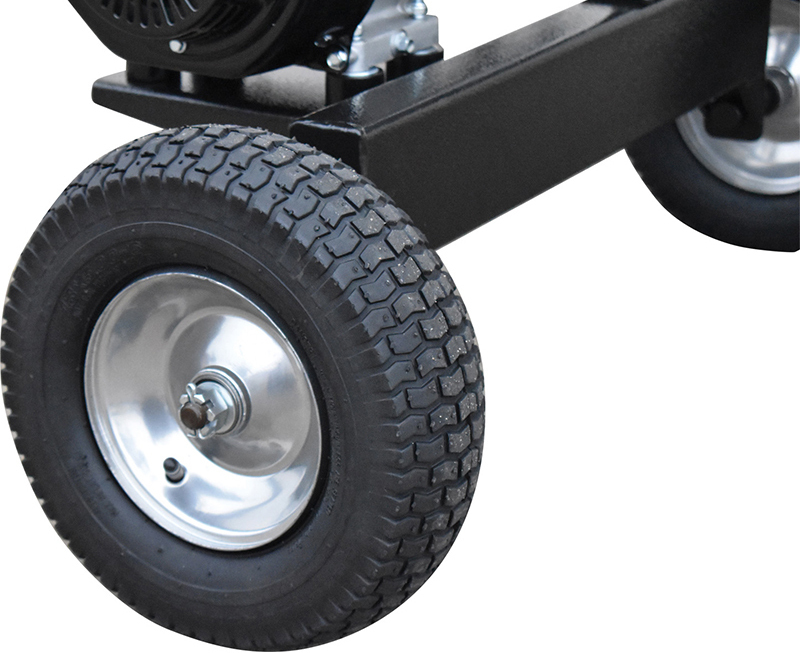

  • Wheels (Dia): 330mm (13")

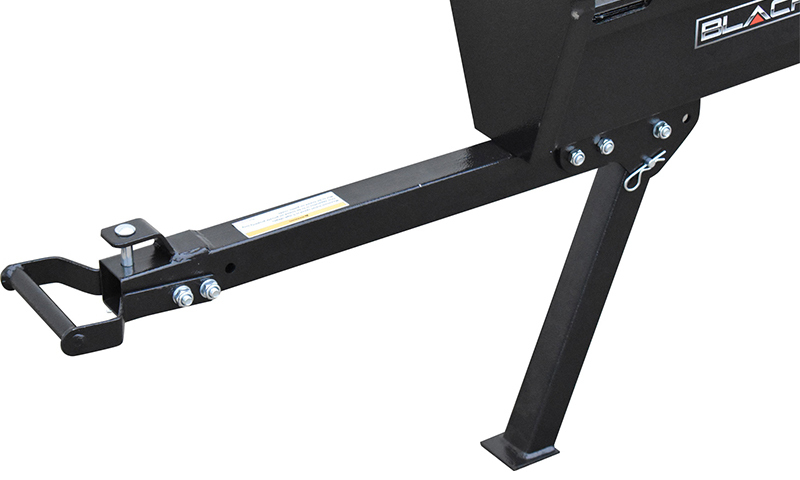

  • Tow Coupling: Hitch
  • Max Towing Speed: 8km/h
  • Jockey Wheel (Dia): NA
  • Packing Dimensions: 1680 x 420 x 690mm
  • Gross Weight: 160kg


Brand Millers Falls
Shipping Weight 160.0000kg
Shipping Width 1.680m
Shipping Height 0.690m
Shipping Length 0.420m
Shipping Cubic 0.486864000m3
