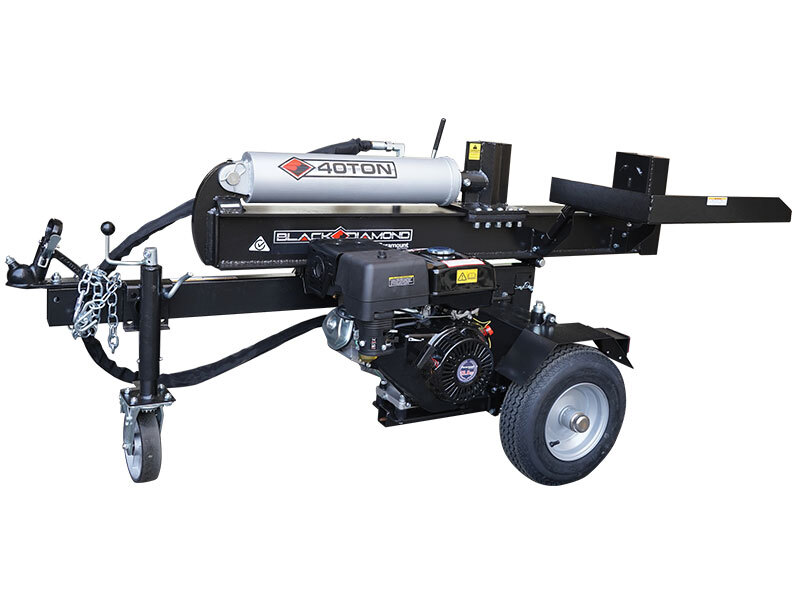

TWM Black Diamond 40 Ton Petrol Log Splitter Manual Start LS40BD

The TWM Black Diamond 40 Ton Petrol Log Splitter LS40BD is a high-performance tool designed for splitting even the toughest logs with ease. Powered by a powerful 13hp 4-stroke OHV petrol engine, this log splitter delivers exceptional performance and reliability.

The LS40BD features a heavy-duty steel frame and a removable log table, which makes it easy to split logs of varying lengths. The splitter also has a robust 200mm splitting wedge, which ensures a fast and efficient performance.

Additionally, the splitter is equipped with an auto return control valve with a safety release function, which ensures safe and efficient operation. The splitter has a maximum log length capacity of 550cm, which makes it ideal for splitting large logs for firewood, construction, and other purposes.

The splitter is also designed for easy transportation, with a 50mm tow coupler that makes it easy to hitch to a vehicle. Its compact size makes it easy to store when not in use.

The TWM Black Diamond 40 Ton Petrol Log Splitter LS40BD is a highly efficient and reliable tool that is perfect for anyone who needs to split large logs quickly and easily. Its powerful petrol engine, sturdy construction, and auto return control valve make it a great choice for professionals, farmers, and homeowners who need to split logs on a regular basis.

  • Model: LS40BD
  • Petrol Engine: 13.0hp
  • Recoil Start: Yes
  • Electric Start: No
  • Battery Size: NA
  • Recommend Engine Oil: 10W/40
  • Horizontal Use: Yes
  • Vertical Use: Yes
  • Max Log Length: 550mm
  • Ram Capacity: 40Ton
  • Ram Diameter: 127mm
  • Stroke: 493mm
  • Pump: Twin Stage / 11gpm
  • Auto Return Release: Yes
  • Total Cycle Time (Min): 18sec
  • Splitting Time (Min): 9.5sec
  • Return Time (Min): 8.5sec
  • Oil Reservoir: 16L
  • Hydraulic Oil: Included
  • Recommend Hydraulic Oil: 10W AW32
  • Lifting Table Capacity: NA
  • Splitting Wedge: 200mm
  • Wheels (Dia): 400mm (16")
  • Tow Coupling: 50mm
  • Max Towing Speed: 60km/h
  • Jockey Wheel (Dia): 200mm
  • Packing Dimensions: 1720 x 520 x 790mm
  • Gross Weight: 320kg


Brand Millers Falls
Shipping Weight 320.0000kg
Shipping Width 1.720m
Shipping Height 0.790m
Shipping Length 0.520m
Shipping Cubic 0.706576000m3
