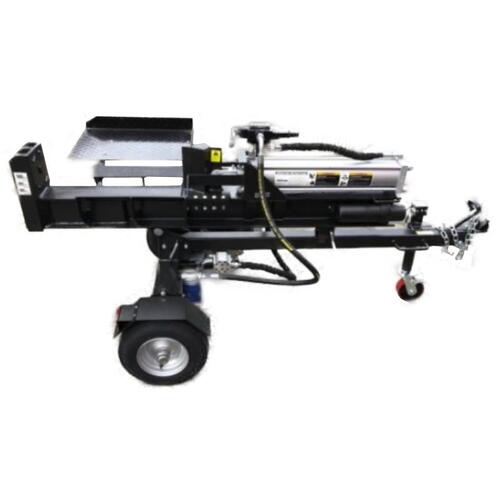

TWM 30 Tonne Log Splitter Electric Start LS30JTTESBD

Model: LS30JTTESBD

  • Model: LS30JTTESBD
  • Engine: 6.5 horsepower, 4 stroke, OHV, air cooled
  • Electric start
  • Battery: 12 volt,9AH maintenance free, lead acid

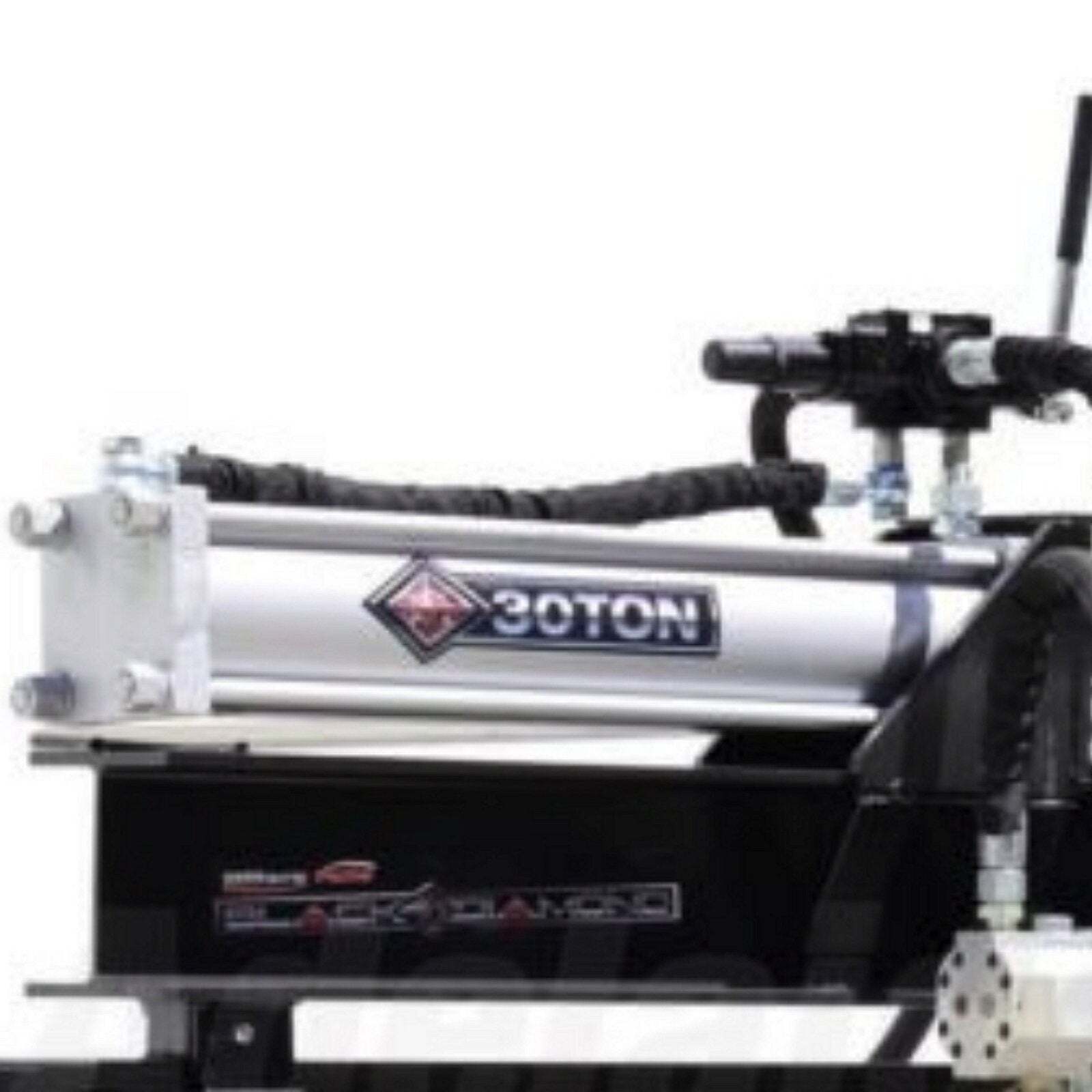

  • Hydraulic cylinder size: 100mm diameter x 580mm stroke
  • Oil capacity: 10 litres
  • Gear pump : 2 stage 11GPM

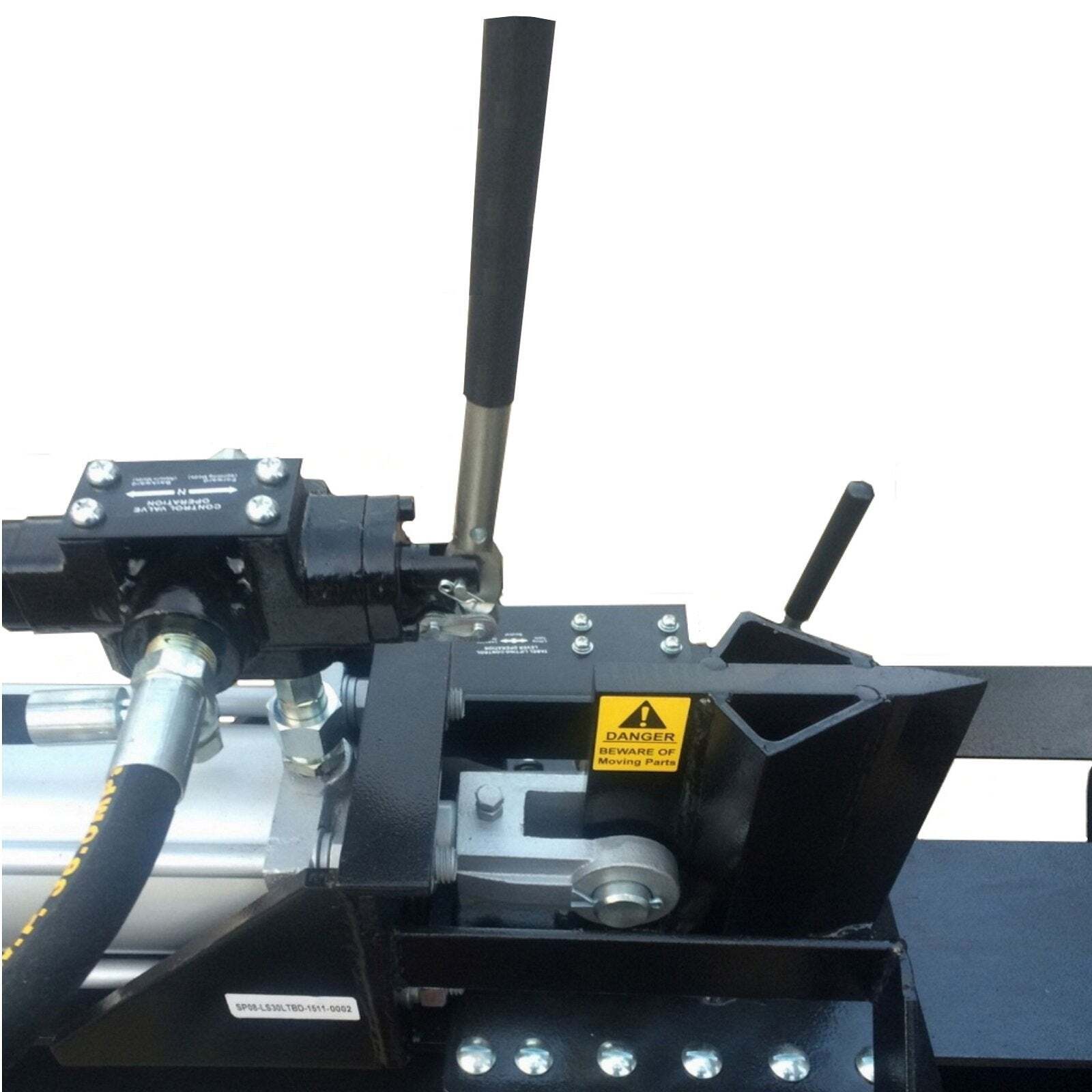

  • Automatic return control valve
  • Maximum splitting force: 30 ton
  • Wedge height 8” (200mm)
  • Split and return cycle time: 14 seconds

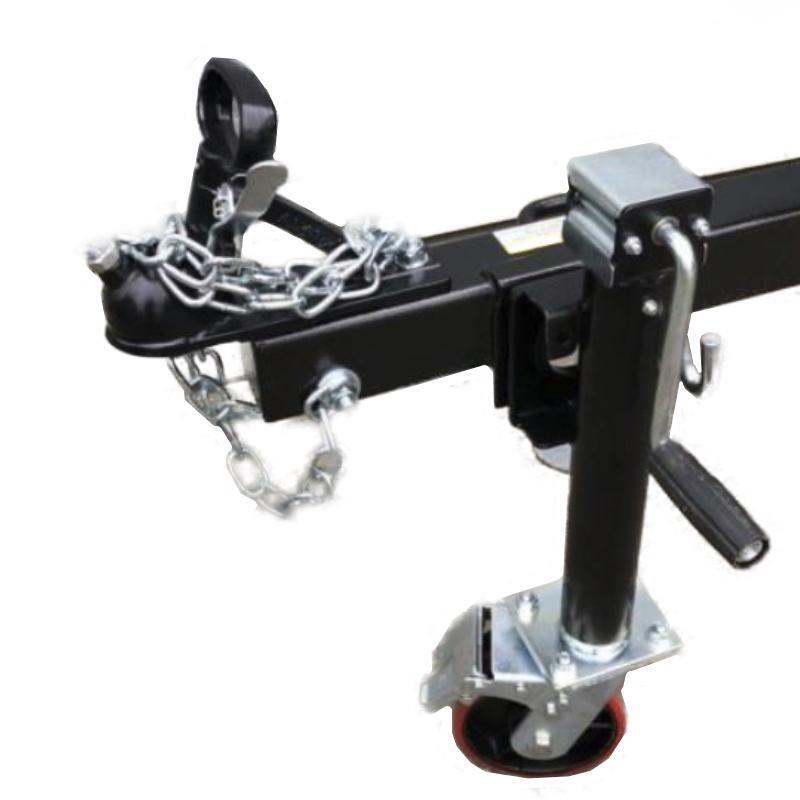

  • Jockey wheel

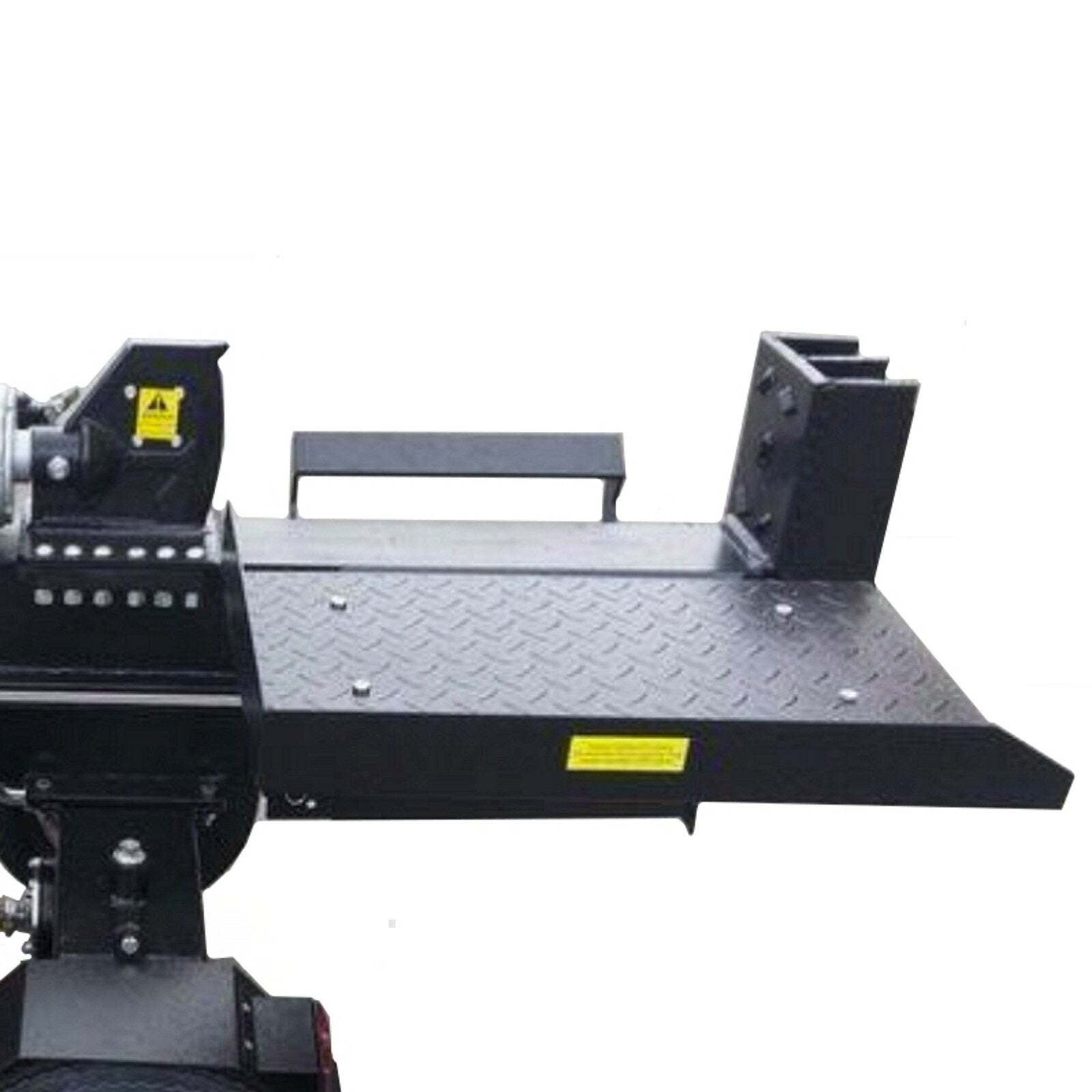

  • Log table
  • Maximum log length: 24” (610mm)

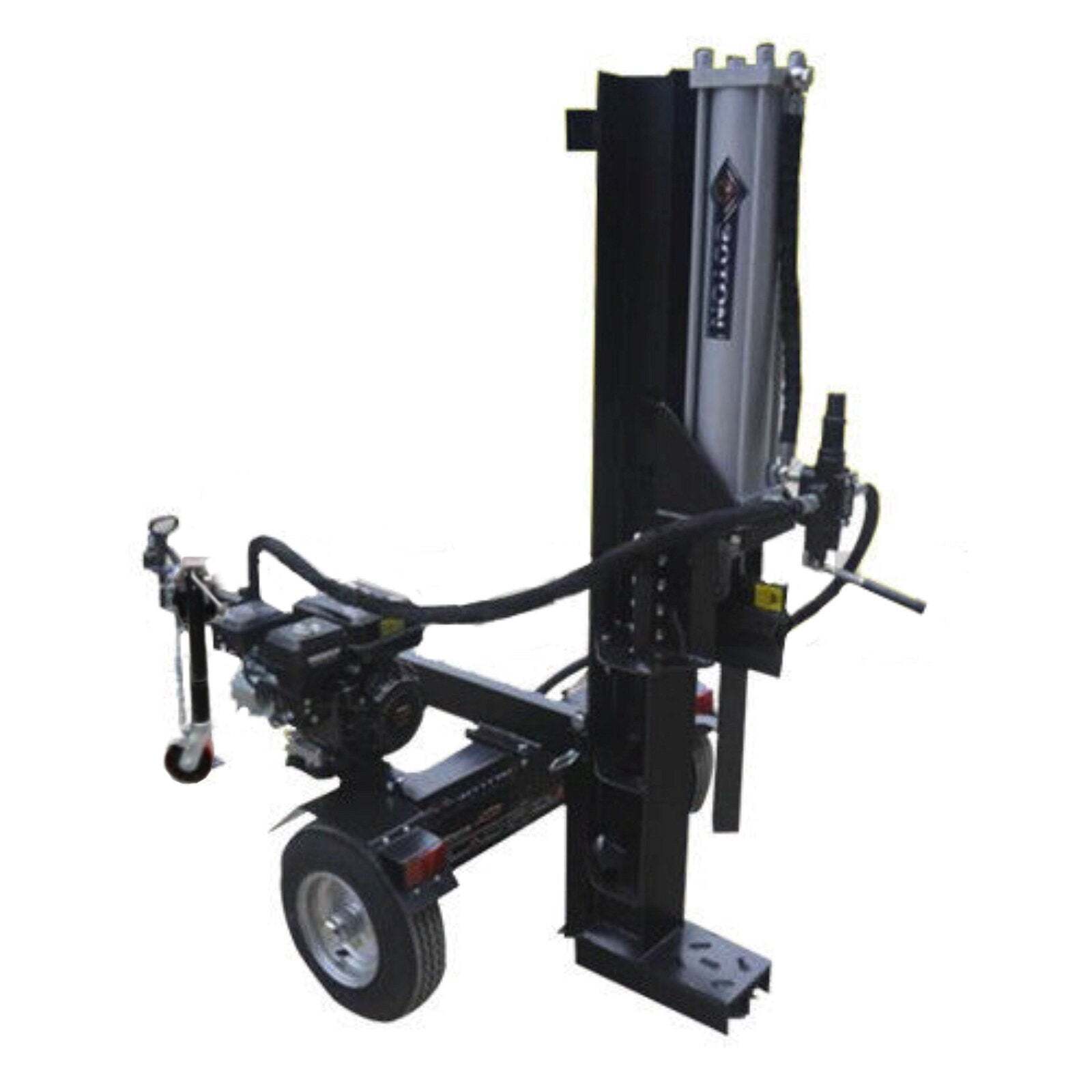

  • Working position: Horizontal and vertical
  • Wheels and tyres: 16” x 6.5” pneumatic with mudguards and rear reflectors
  • Coupler: 50mm cast steel with safety chains
  • Maximum recommended towing speed: 72 km/h

(LS30JTTESBD)

SKU LS30JTTESBD
Brand Millers Falls
Shipping Weight 272.0000kg
Shipping Width 1.870m
Shipping Height 0.680m
Shipping Length 0.510m
Shipping Cubic 0.648516000m3
