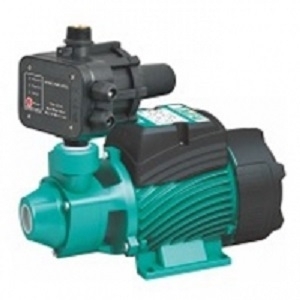

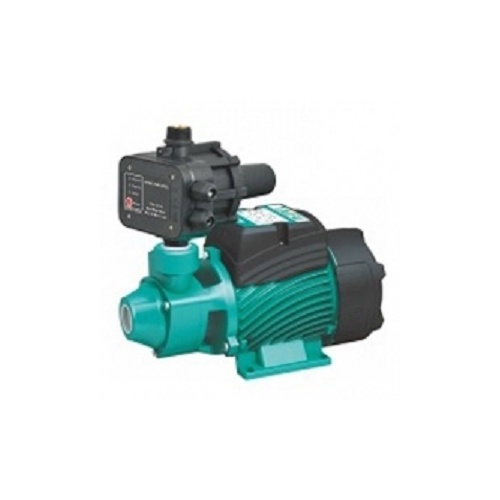

TAIFU QB60 Pump

MODEL: QB60

ELECTRONIC WATER PUMP

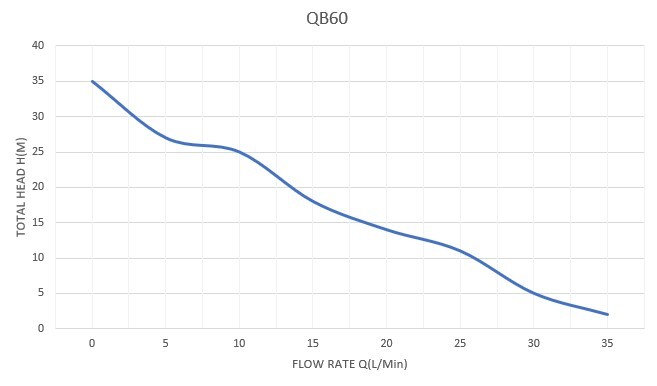

  MODEL      OUTPUT POWER     FLOWmax     HEADmax     INLET/OUTLET     GW     PACKING DIMENSION
HP L/min M In Kg cm
QB60 0.5 35 32  1 X 1 14  26.5 X 16 X 14



Specifications

  • CE certificate
  • Copper wire
  • Stainless steel shaft
  • Cold-rolled silicon steel sheet



Application

Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable, chemically neutral and close to water. Such as:

  • Tank filling
  • Domestic water supply
  • Water transfer
  • Pressure boosting
  • Irrigation



Features

  • 100% copper wire, and automatic wiring
  • C&U bearings ( the best bearing brand of China )
  • Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision
  • 304 Stainless steel welding shaft
  • Demagnetization of stainless steel nuts
  • Anti-rust treatment castings and electrophoresis
  • New testing equipment



Technical data

  • Suction lift up to 8 m
  • Liquid  temperature up to +35°C
  • Ambient temperature up to +40°C
  • Max. Working pressure: 6 bar


(QB60-E)

SKU QB60-E
Brand Taifu
Shipping Weight 7.0000kg
Shipping Width 0.300m
Shipping Height 0.160m
Shipping Length 0.430m
Shipping Cubic 0.020640000m3
