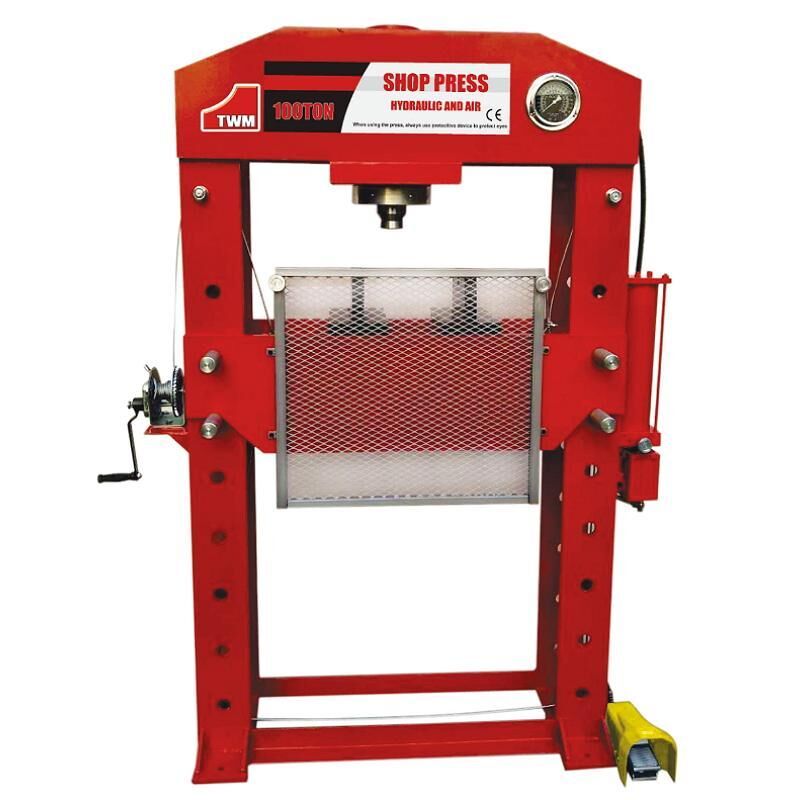

Millers Falls 100 Ton Air Hydraulic Shop Press

Model: PRESALR100T

Features:

  • Lifting Capacity: 100,000kg (100 tons), making it ideal for heavy-duty pressing applications.
  • Working Range: Adjustable from 101mm to 1016mm, providing flexibility for a variety of tasks.
  • Sliding Head: Allows for easy adjustment and positioning, adding convenience and versatility.
  • Air Hydraulic/Manual Operation: Features both air hydraulic and manual operation options, offering control flexibility.
  • Stroke: 280mm, ensuring sufficient space for a variety of pressing applications.
  • Air Pressure: Operates at 0.75–0.85Mpa, suitable for a range of industrial tasks.
  • Air Inlet Fitting: ¼ inch NPT for easy connection to air supply.
  • Bed Width: 813mm, providing ample space for materials during pressing.
  • Foot Valve: Allows hands-free operation, enhancing safety and efficiency during use.
  • Dimensions: A-1400mm, B-1000MM, C-1900mm, D-155mm, E-820mm, F-280mm, G-850mm, H255mm

Specifications:

  • Capacity: 100,000kg (100 tons)
  • Working Range: 101mm–1016mm
  • Stroke: 280mm
  • Air Pressure: 0.75–0.85 Mpa
  • Air Inlet Fitting: ¼ inch NPT
  • Bed Width: 813mm
  • Shipping Dimensions: 210 x 115 x 52 cm
  • Net Weight: 487kg
  • Shipping Weight: 528kg

(PRESALR100T)

SKU PRESALR100T
Brand Millers Falls
Shipping Weight 528.0000kg
Shipping Width 2.100m
Shipping Height 0.520m
Shipping Length 1.150m
Shipping Cubic 1.255800000m3
